5 breaking points in data-intensive systems

From the cheapest fix to the costliest, and a Laravel stack with a reason for every part.

Muhammet Şafak

Section 01

Five breaking points

From the working set to a separate data tier: from the cheapest intervention to the most expensive.

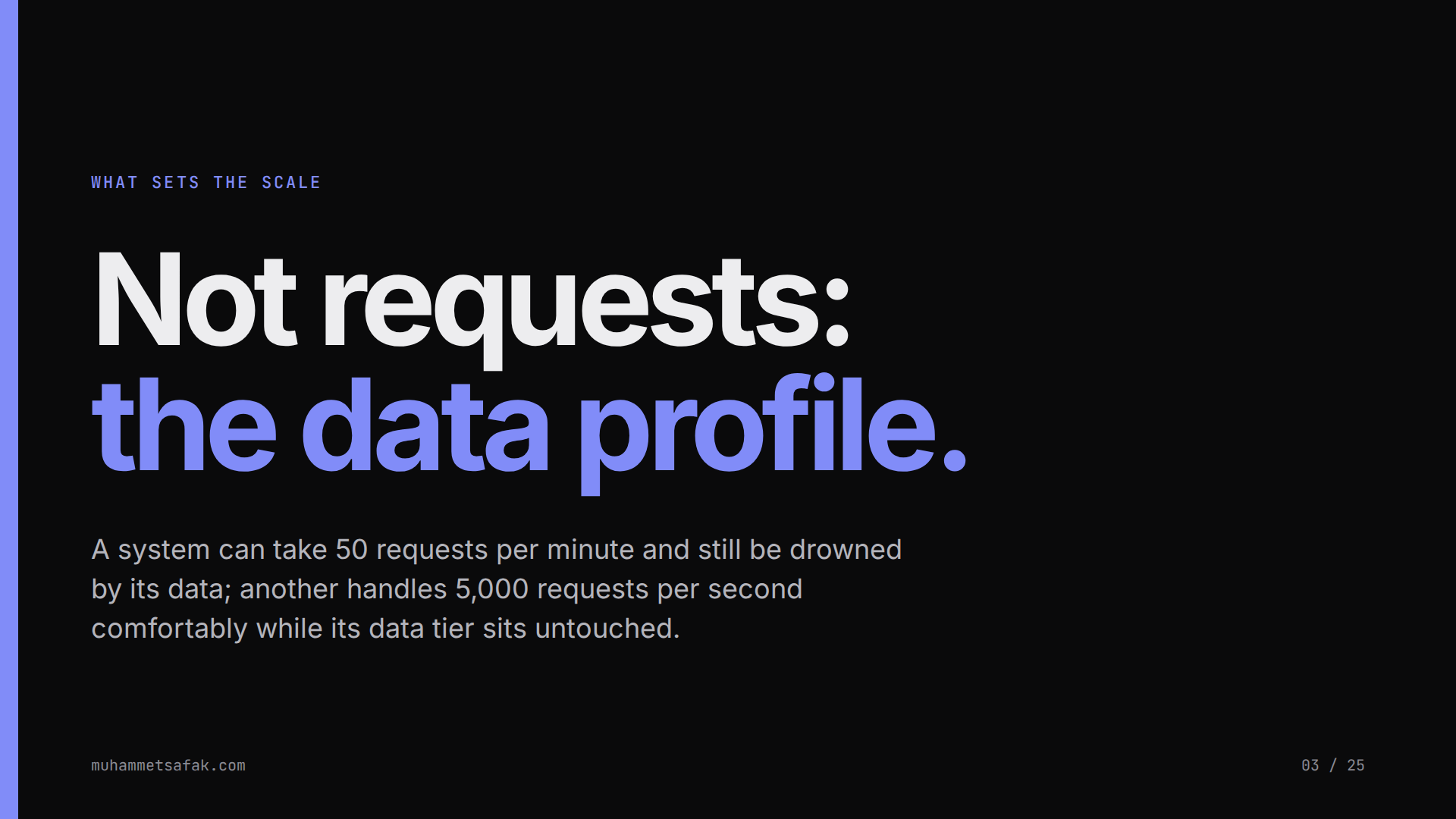

What sets the scale

Not requests: the data profile.

A system can take 50 requests per minute and still be drowned by its data; another handles 5,000 requests per second comfortably while its data tier sits untouched.

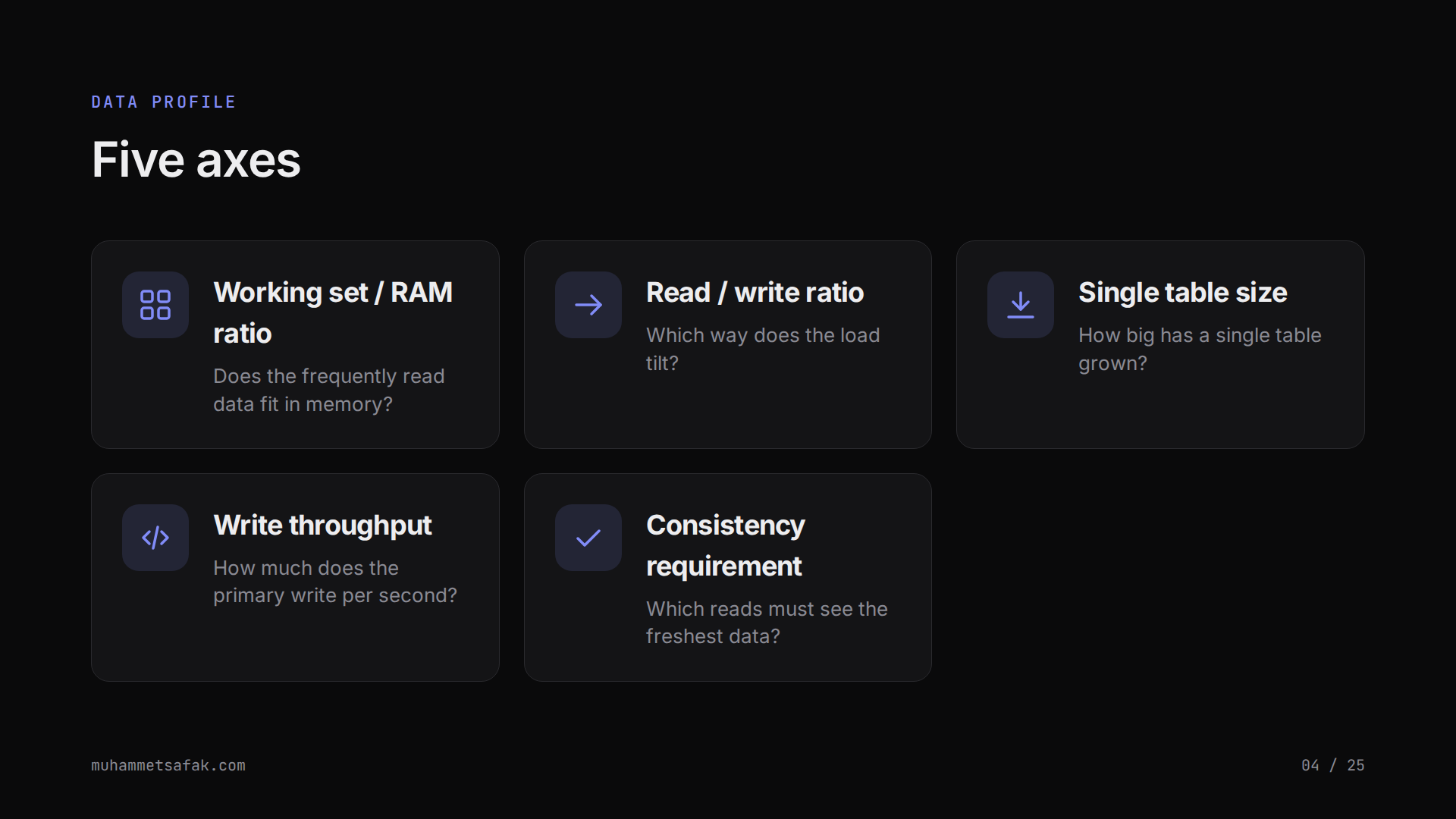

Data profile

Five axes

  • Working set / RAM ratio Does the frequently read data fit in memory?
  • Read / write ratio Which way does the load tilt?
  • Single table size How big has a single table grown?
  • Write throughput How much does the primary write per second?
  • Consistency requirement Which reads must see the freshest data?

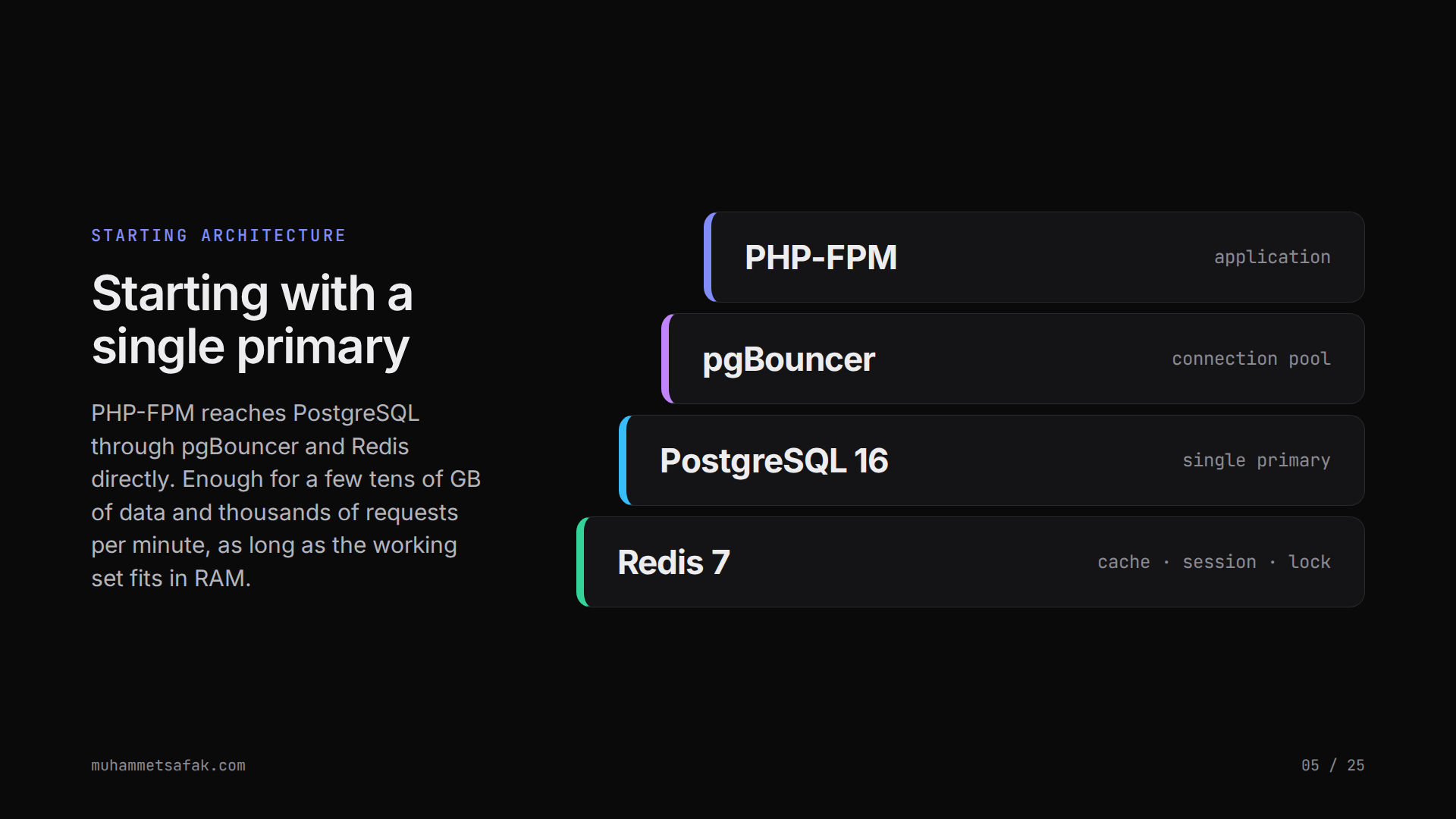

Starting architecture

Starting with a single primary

PHP-FPM reaches PostgreSQL through pgBouncer and Redis directly. Enough for a few tens of GB of data and thousands of requests per minute, as long as the working set fits in RAM.

  1. PHP-FPM application
  2. pgBouncer connection pool
  3. PostgreSQL 16 single primary
  4. Redis 7 cache · session · lock

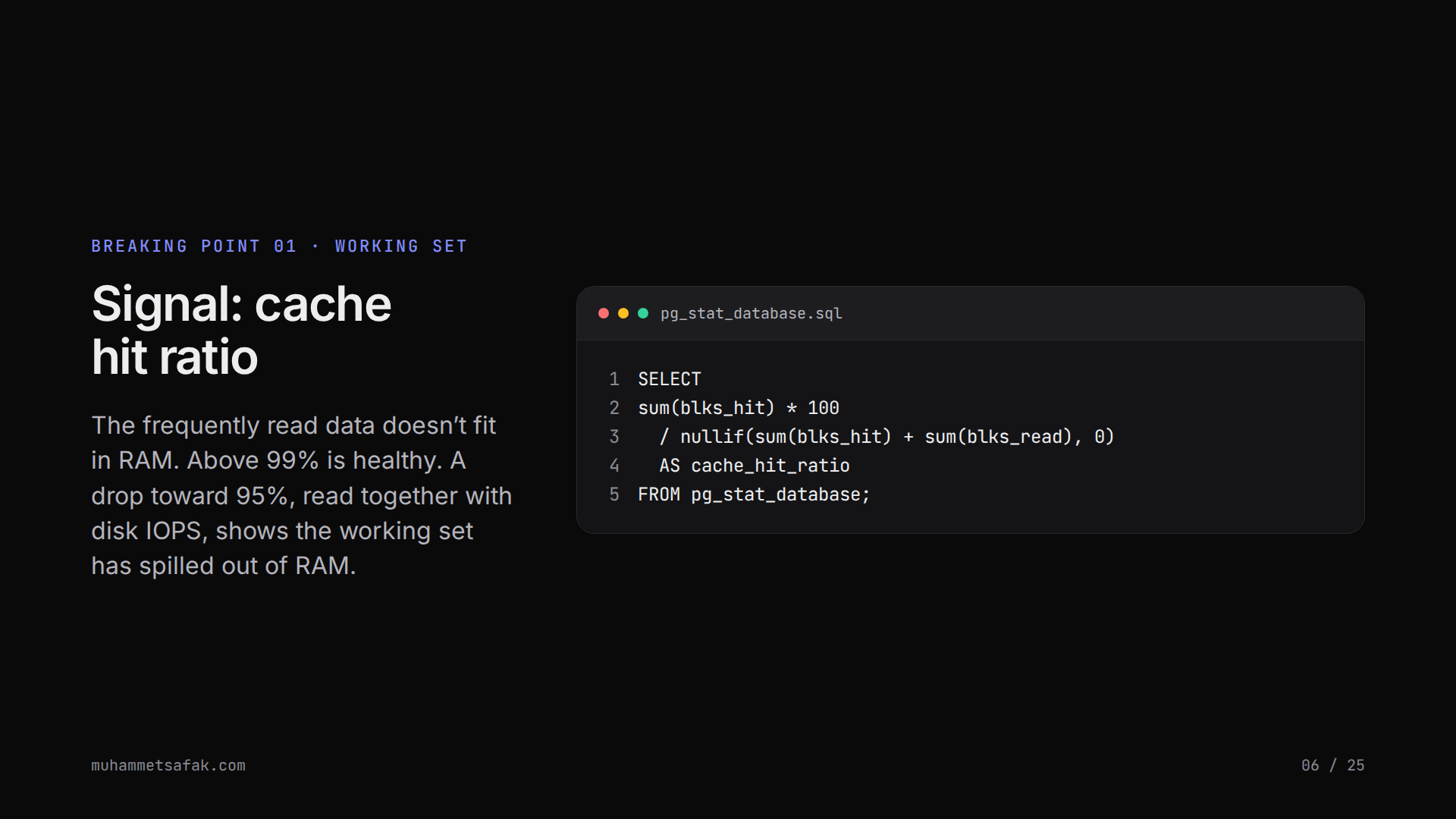

Breaking point 01 · Working set

Signal: cache hit ratio

The frequently read data doesn’t fit in RAM. Above 99% is healthy. A drop toward 95%, read together with disk IOPS, shows the working set has spilled out of RAM.

pg_stat_database.sql
SELECTsum(blks_hit) * 100  / nullif(sum(blks_hit) + sum(blks_read), 0)  AS cache_hit_ratioFROM pg_stat_database;

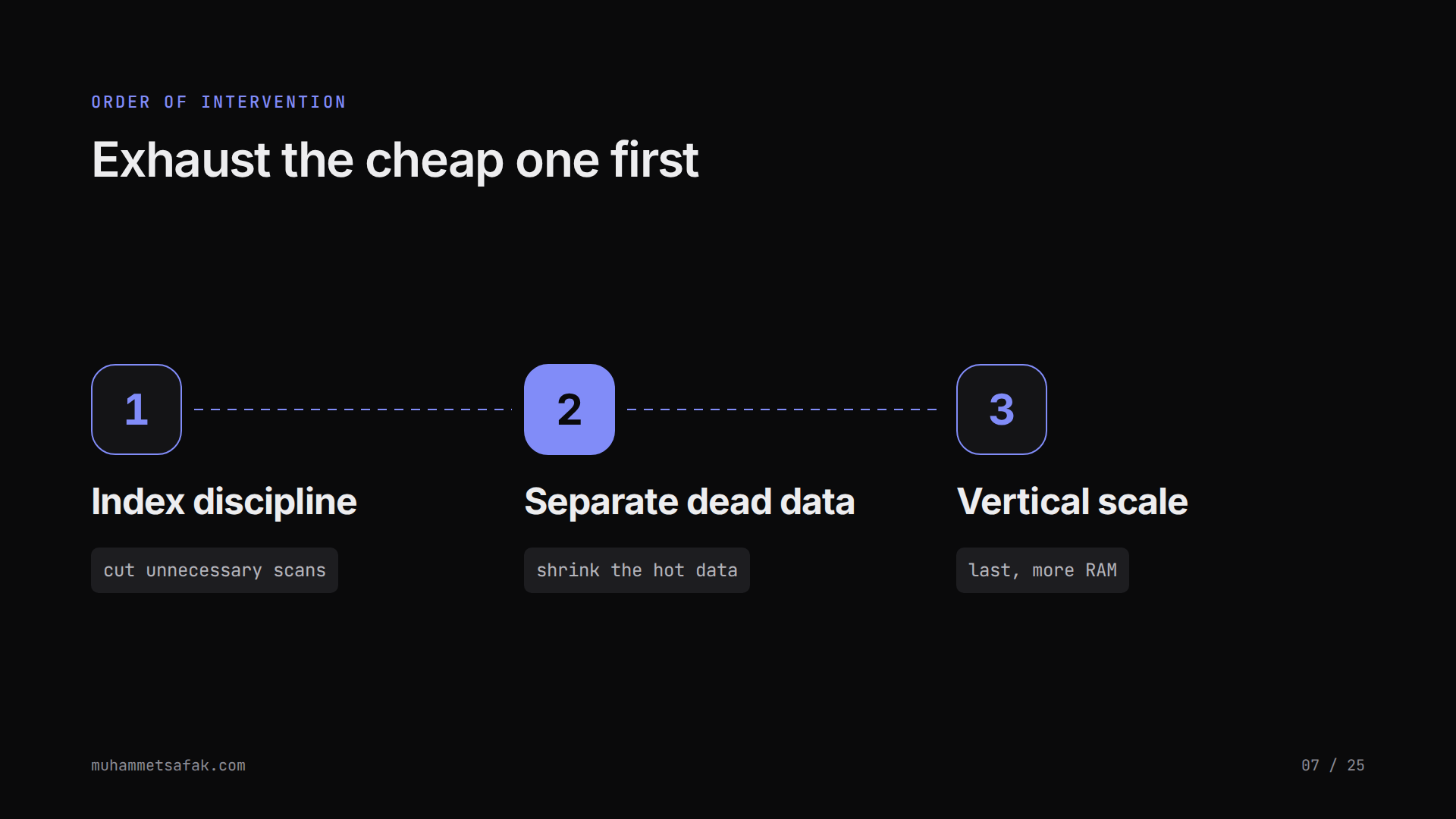

Order of intervention

Exhaust the cheap one first

  1. Step 1: Index discipline cut unnecessary scans
  2. Step 2: Separate dead data shrink the hot data
  3. Step 3: Vertical scale last, more RAM

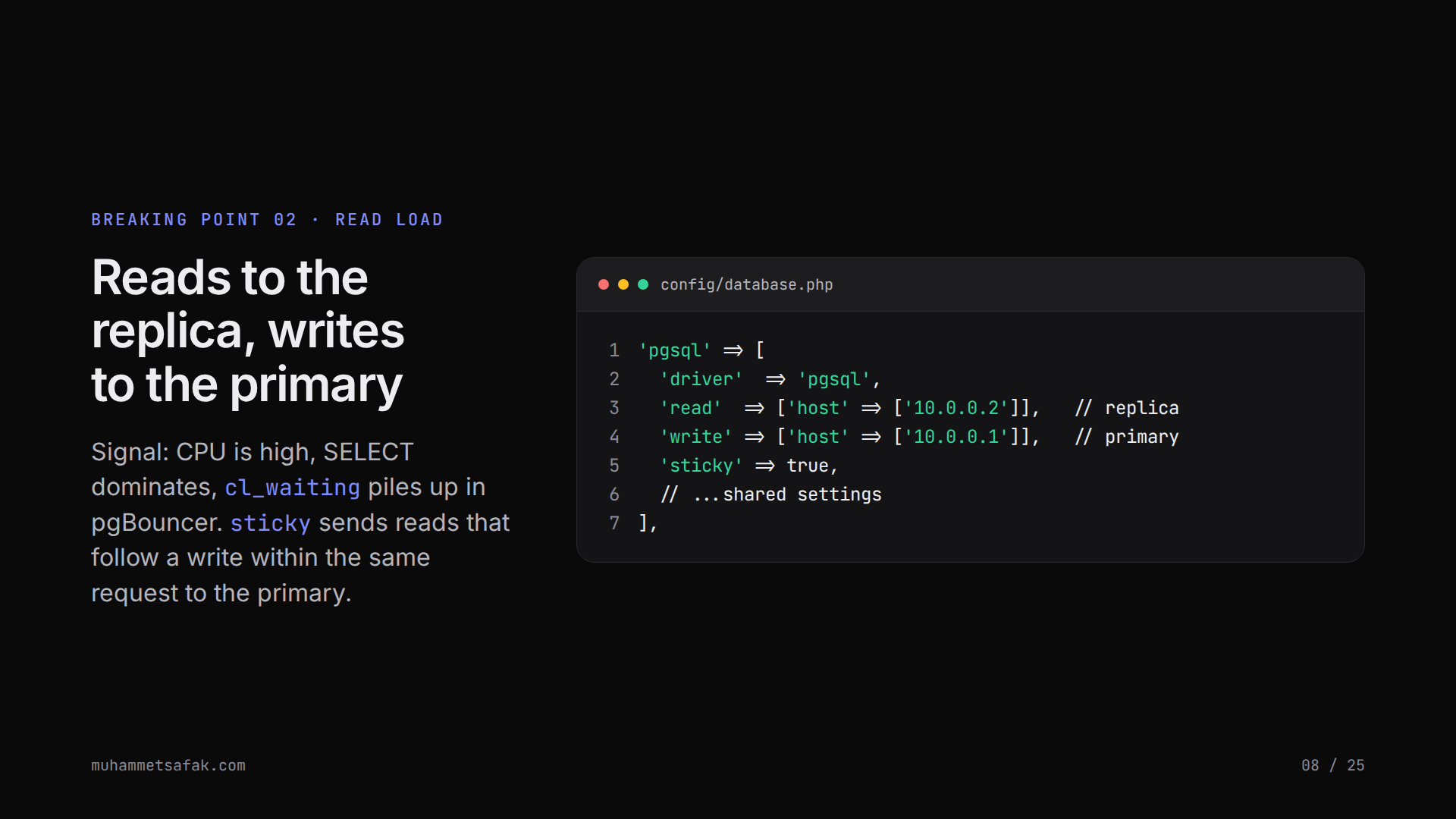

Breaking point 02 · Read load

Reads to the replica, writes to the primary

Signal: CPU is high, SELECT dominates, cl_waiting piles up in pgBouncer. sticky sends reads that follow a write within the same request to the primary.

config/database.php
'pgsql' => [  'driver'  => 'pgsql',  'read'  => ['host' => ['10.0.0.2']],   // replica  'write' => ['host' => ['10.0.0.1']],   // primary  'sticky' => true,  // ...shared settings],

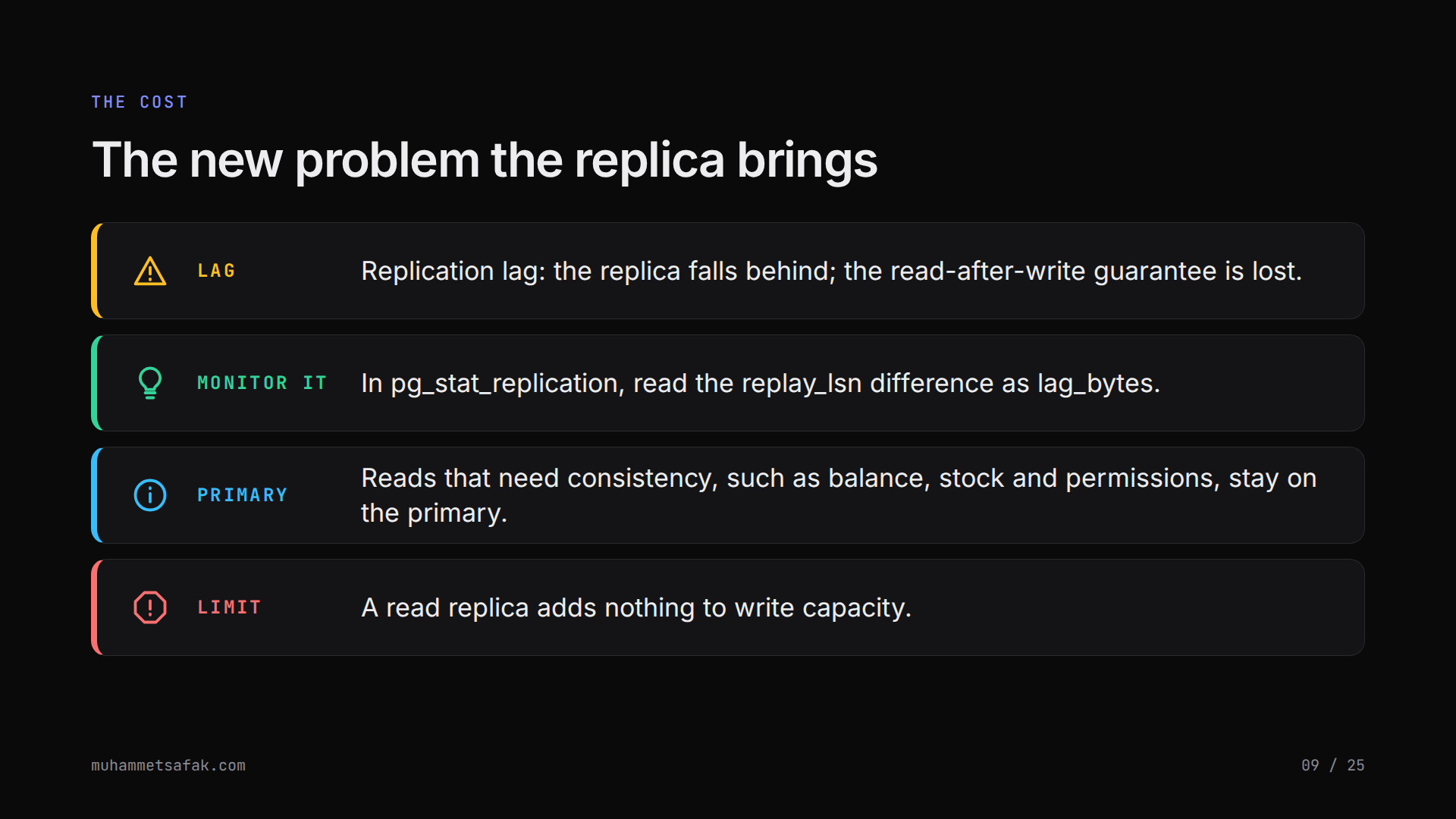

The cost

The new problem the replica brings

  • Lag Replication lag: the replica falls behind; the read-after-write guarantee is lost.
  • Monitor it In pg_stat_replication, read the replay_lsn difference as lag_bytes.
  • Primary Reads that need consistency, such as balance, stock and permissions, stay on the primary.
  • Limit A read replica adds nothing to write capacity.

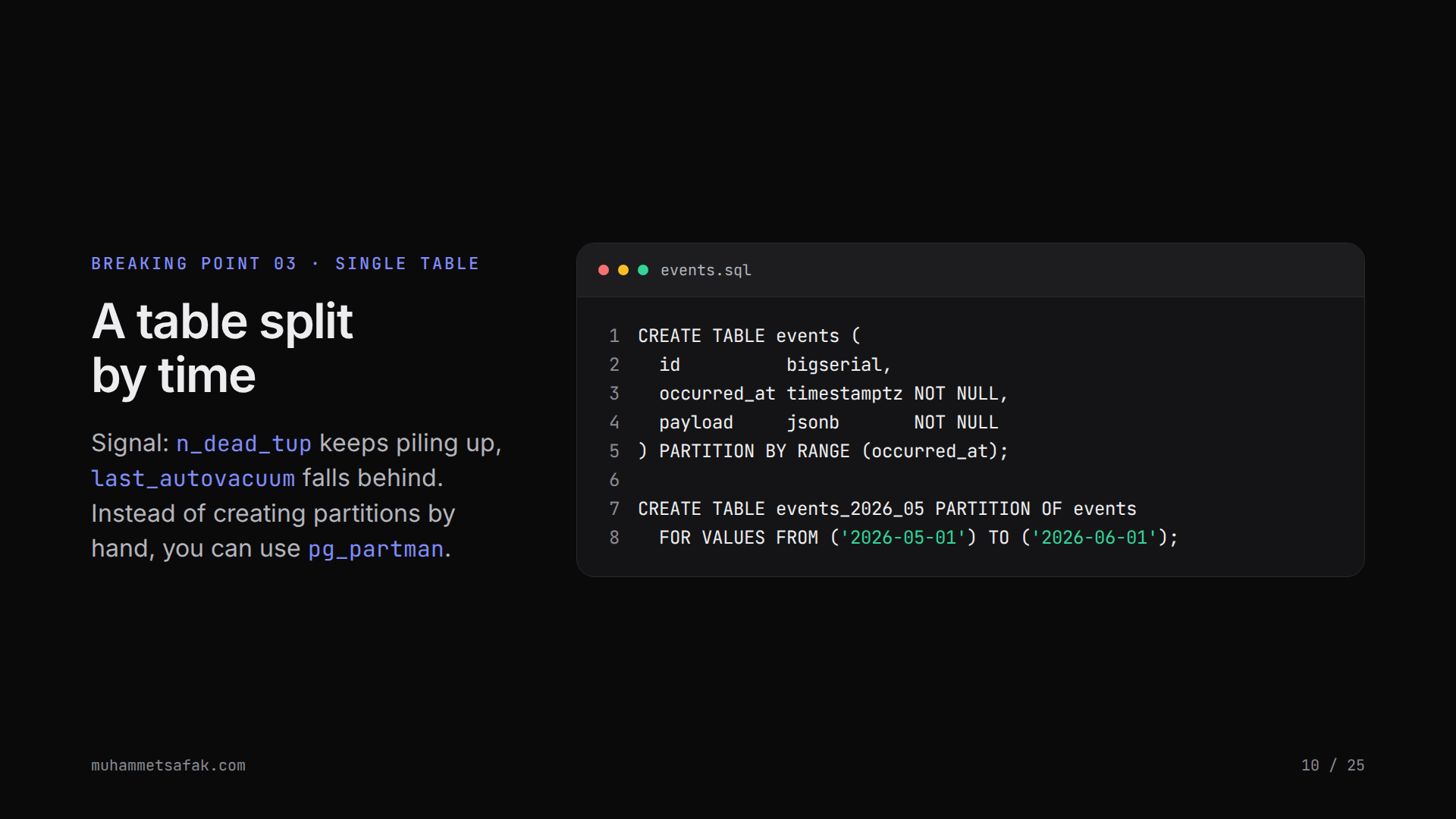

Breaking point 03 · Single table

A table split by time

Signal: n_dead_tup keeps piling up, last_autovacuum falls behind. Instead of creating partitions by hand, you can use pg_partman.

events.sql
CREATE TABLE events (  id          bigserial,  occurred_at timestamptz NOT NULL,  payload     jsonb       NOT NULL) PARTITION BY RANGE (occurred_at);CREATE TABLE events_2026_05 PARTITION OF events  FOR VALUES FROM ('2026-05-01') TO ('2026-06-01');

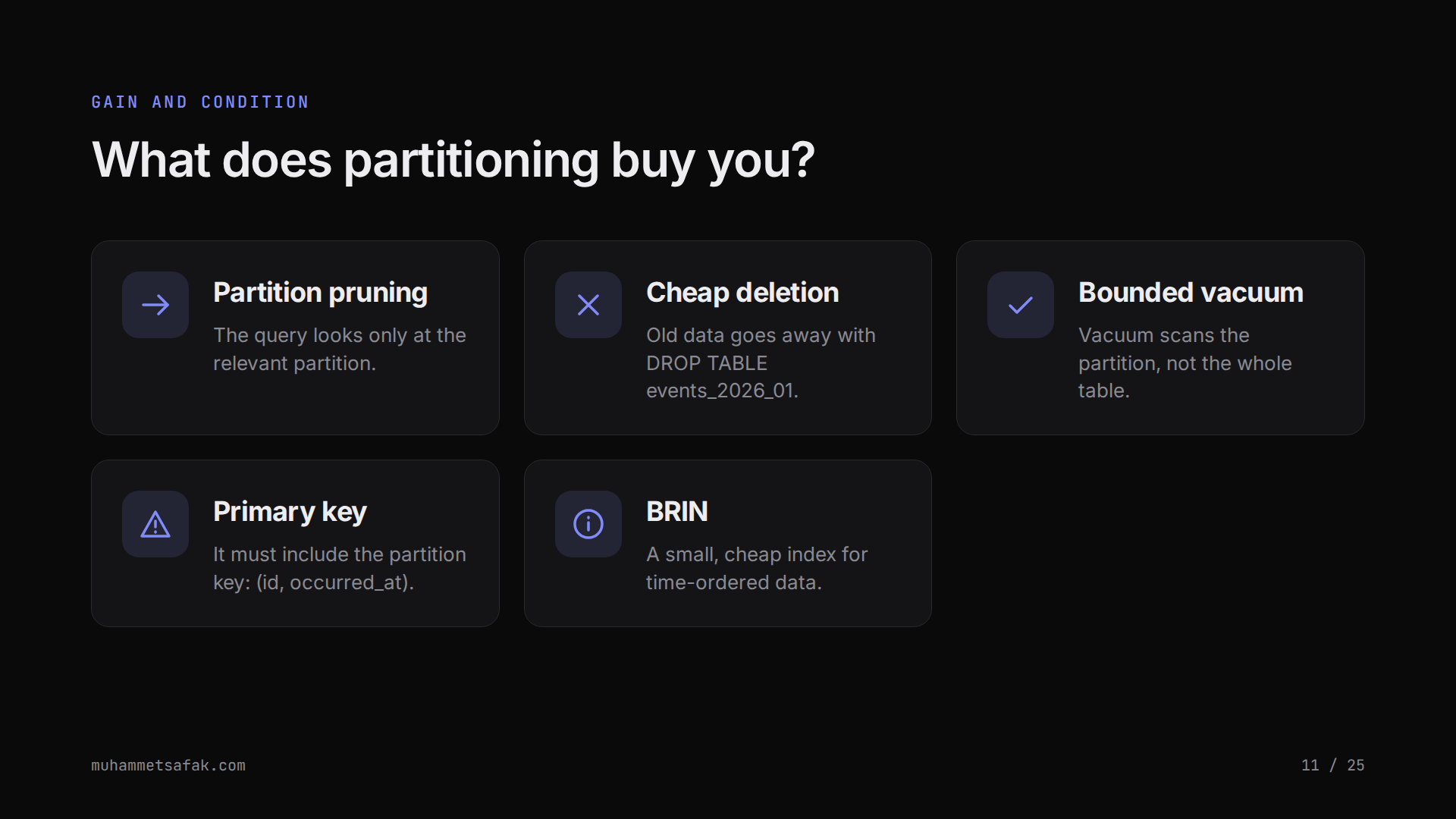

Gain and condition

What does partitioning buy you?

  • Partition pruning The query looks only at the relevant partition.
  • Cheap deletion Old data goes away with DROP TABLE events_2026_01.
  • Bounded vacuum Vacuum scans the partition, not the whole table.
  • Primary key It must include the partition key: (id, occurred_at).
  • BRIN A small, cheap index for time-ordered data.

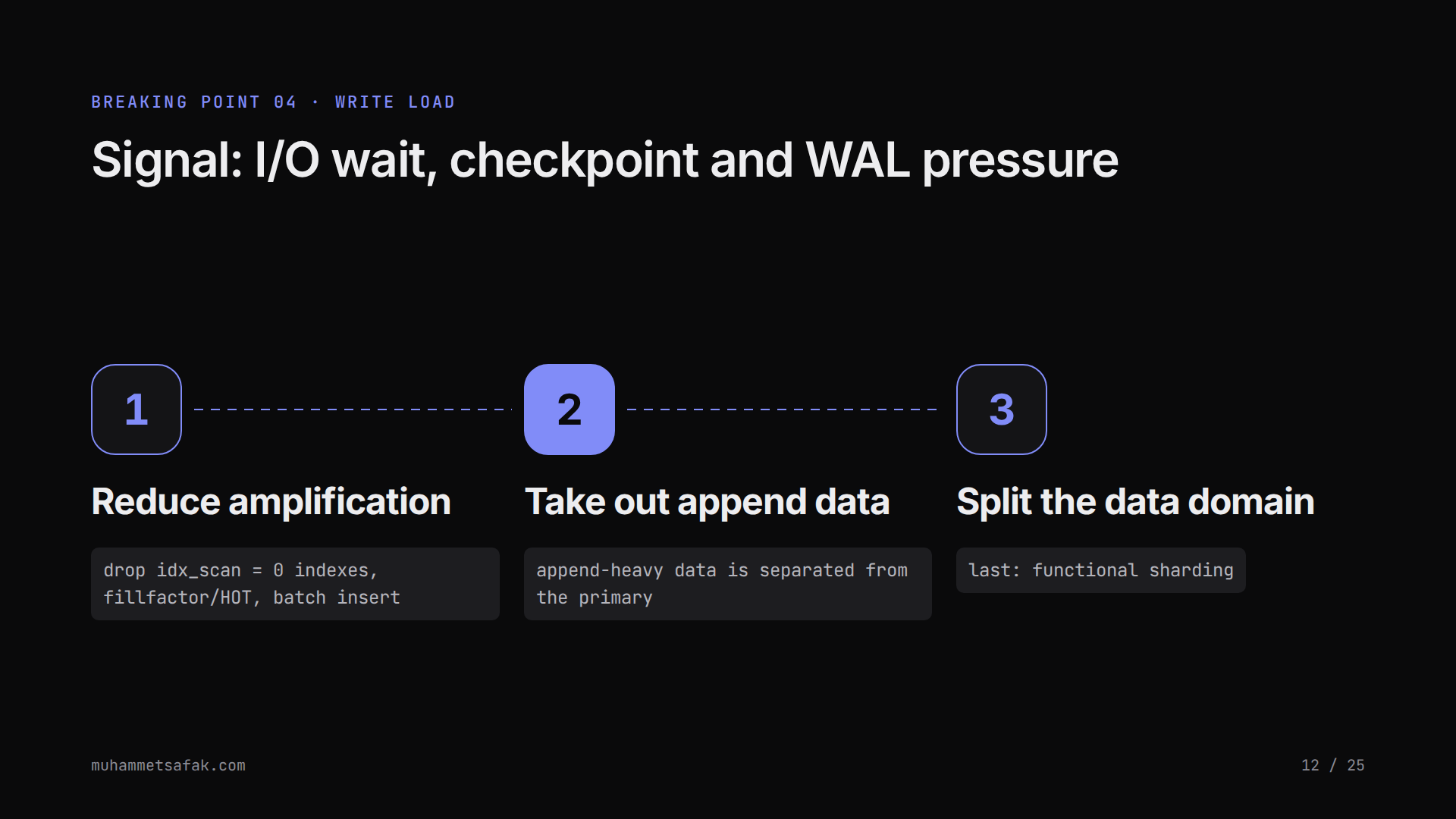

Breaking point 04 · Write load

Signal: I/O wait, checkpoint and WAL pressure

  1. Step 1: Reduce amplification drop idx_scan = 0 indexes, fillfactor/HOT, batch insert
  2. Step 2: Take out append data append-heavy data is separated from the primary
  3. Step 3: Split the data domain last: functional sharding

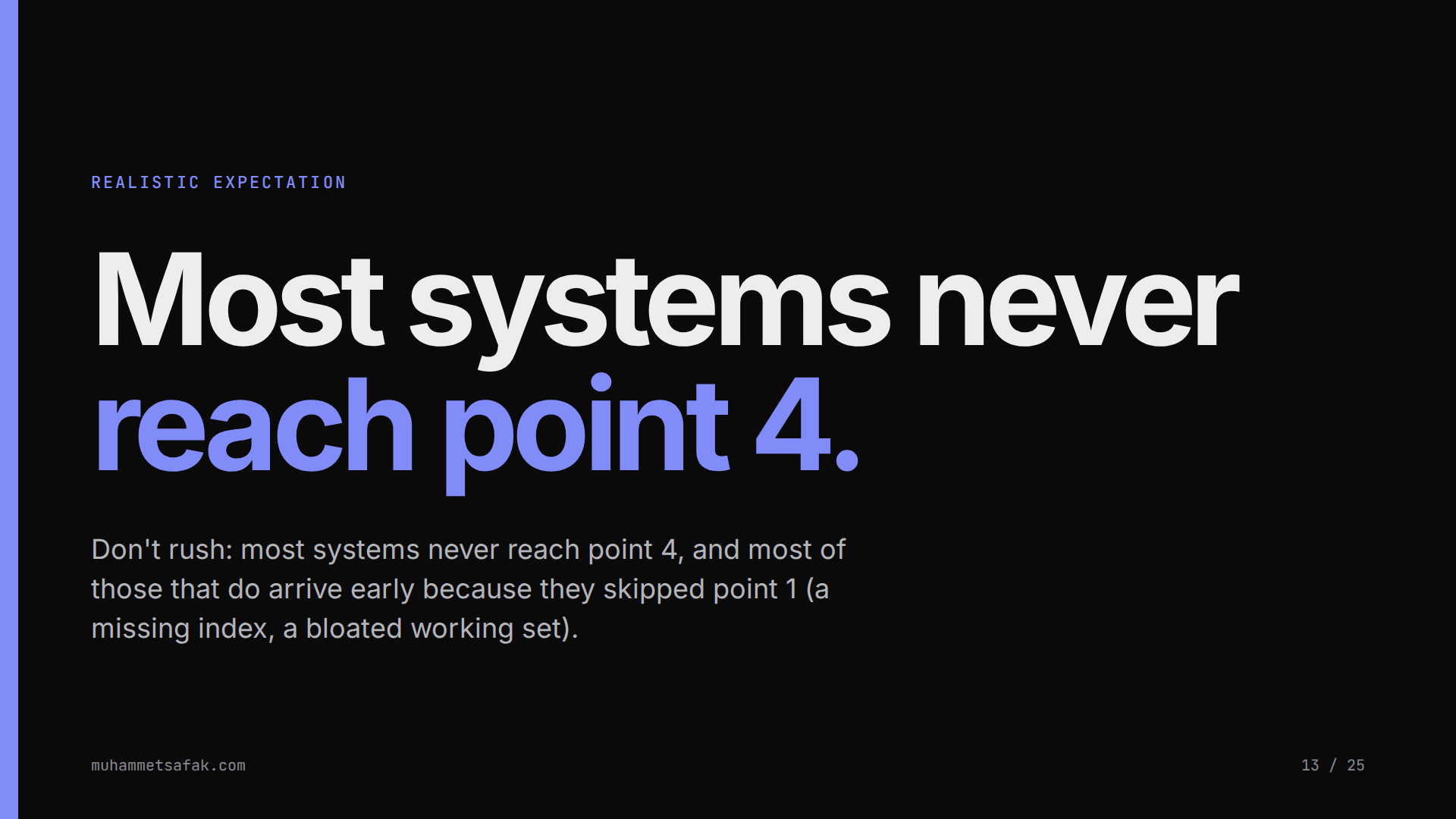

Realistic expectation

Most systems never reach point 4.

Don't rush: most systems never reach point 4, and most of those that do arrive early because they skipped point 1 (a missing index, a bloated working set).

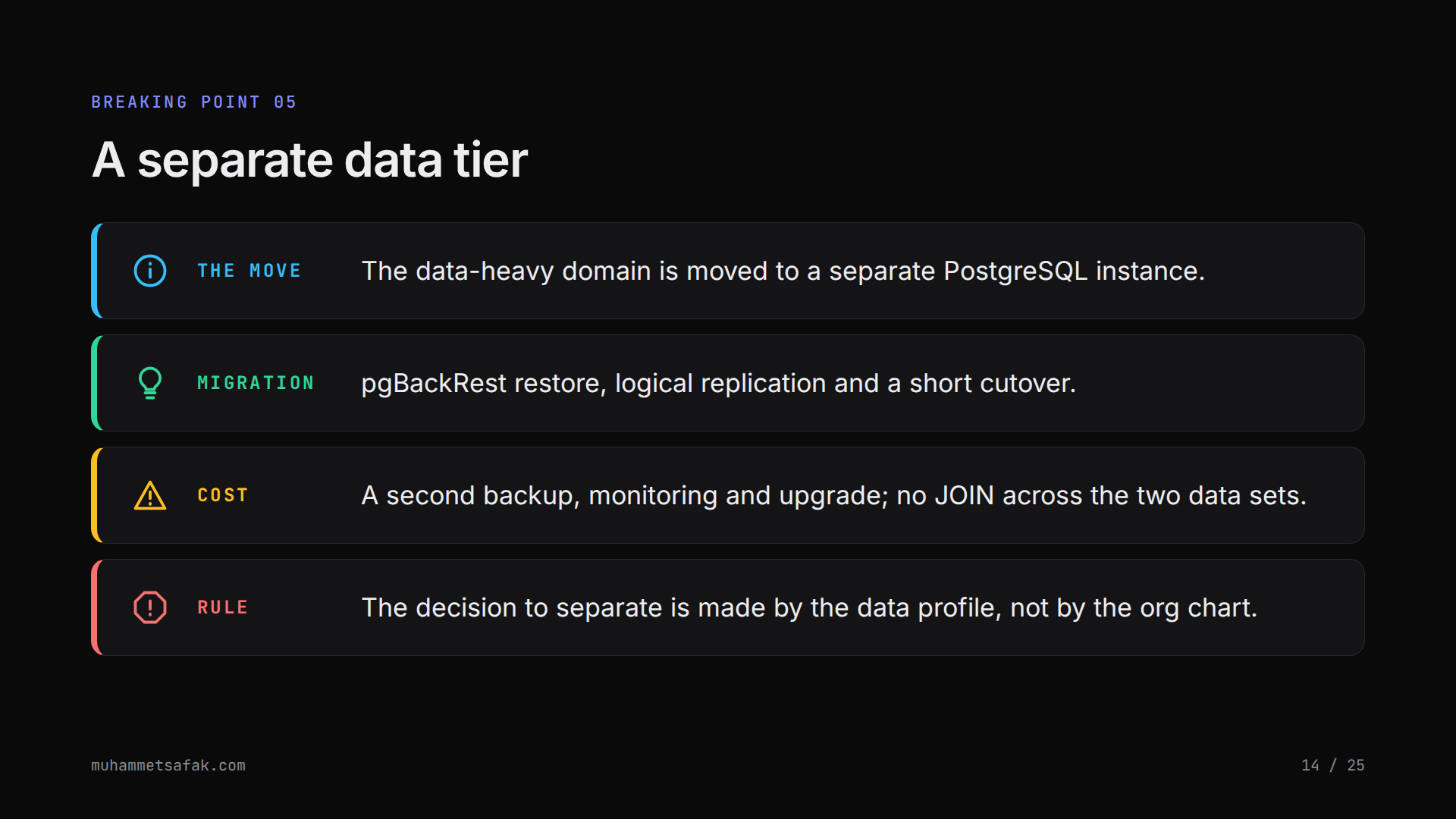

Breaking point 05

A separate data tier

  • The move The data-heavy domain is moved to a separate PostgreSQL instance.
  • Migration pgBackRest restore, logical replication and a short cutover.
  • Cost A second backup, monitoring and upgrade; no JOIN across the two data sets.
  • Rule The decision to separate is made by the data profile, not by the org chart.

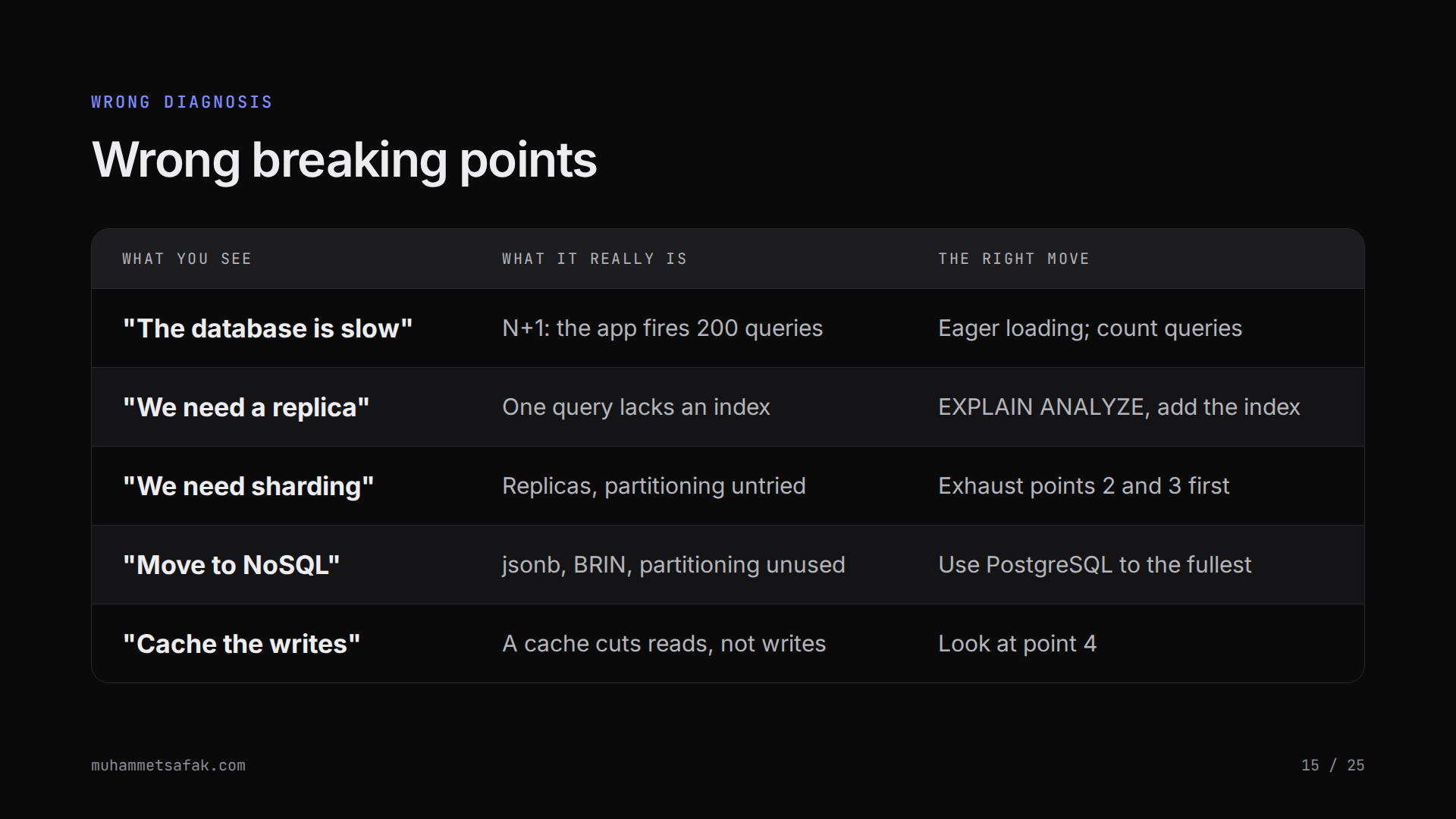

Wrong diagnosis

Wrong breaking points

A read replica scales reads; a cache reduces reads; partitioning tames a single table. None of them increases write throughput.
What you see What it really is The right move
"The database is slow" N+1: the app fires 200 queries Eager loading; count queries
"We need a replica" One query lacks an index EXPLAIN ANALYZE, add the index
"We need sharding" Replicas, partitioning untried Exhaust points 2 and 3 first
"Move to NoSQL" jsonb, BRIN, partitioning unused Use PostgreSQL to the fullest
"Cache the writes" A cache cuts reads, not writes Look at point 4

The common error pattern

None of them adds write capacity.

A read replica scales reads. A cache reduces reads. Partitioning tames a single table. None of them increases write throughput.

jsonb · LISTEN/NOTIFY · partitioning · BRIN · logical replication

You used 20%. That's not a limit.

Most teams use 20% of PostgreSQL and conclude that "PostgreSQL isn't enough".

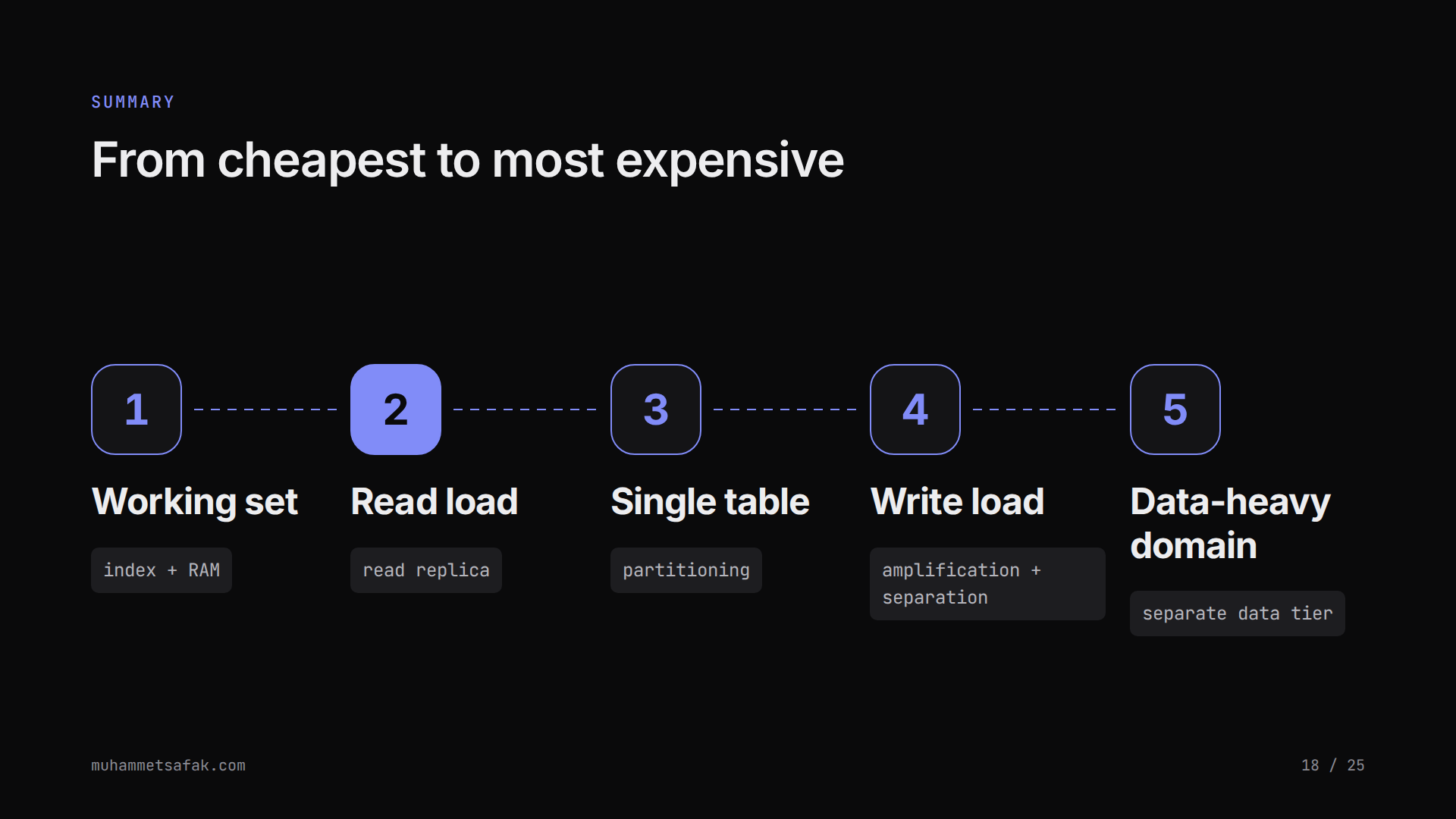

Summary

From cheapest to most expensive

  1. Step 1: Working set index + RAM
  2. Step 2: Read load read replica
  3. Step 3: Single table partitioning
  4. Step 4: Write load amplification + separation
  5. Step 5: Data-heavy domain separate data tier

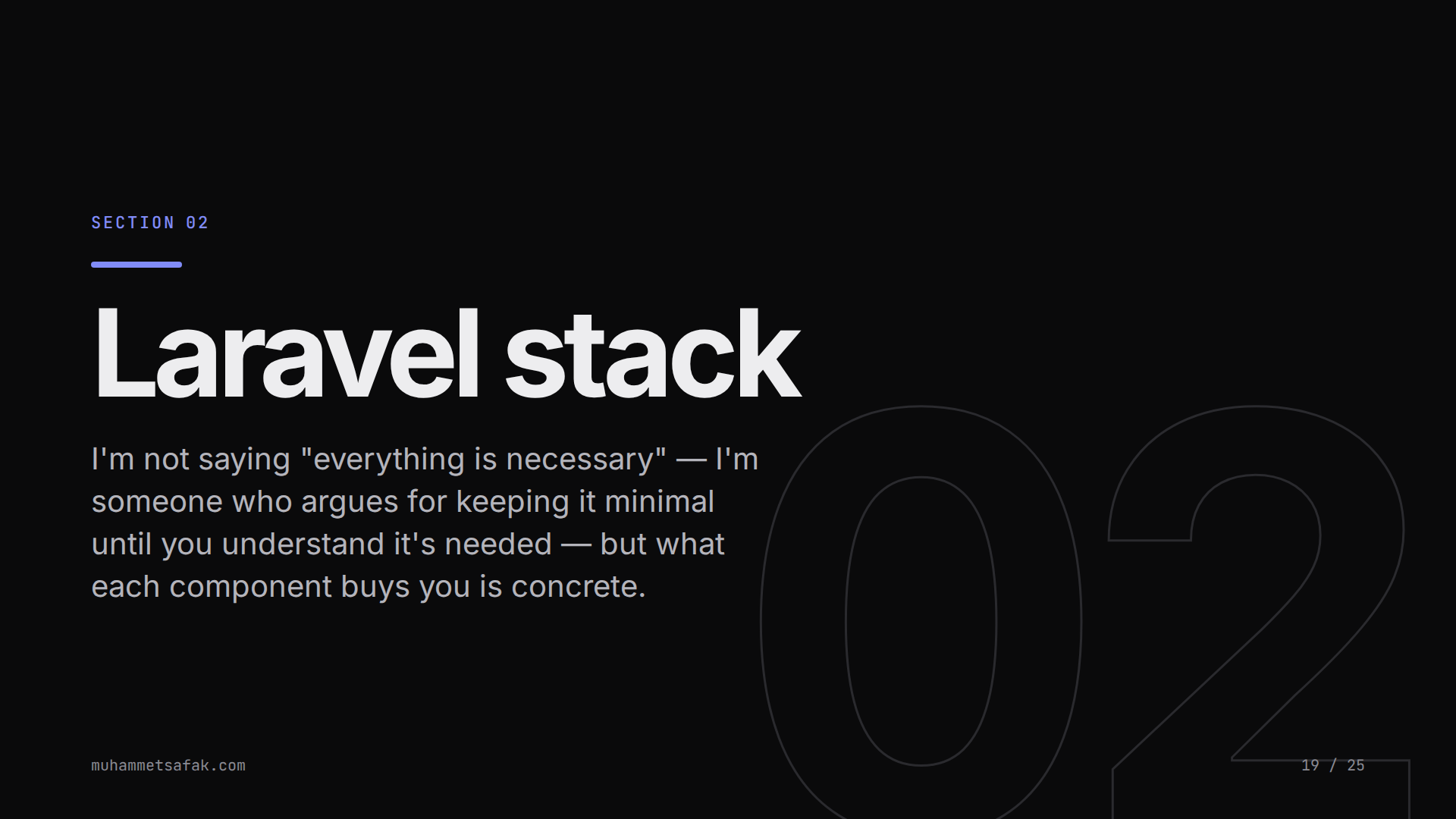

Section 02

Laravel stack

I'm not saying "everything is necessary" — I'm someone who argues for keeping it minimal until you understand it's needed — but what each component buys you is concrete.

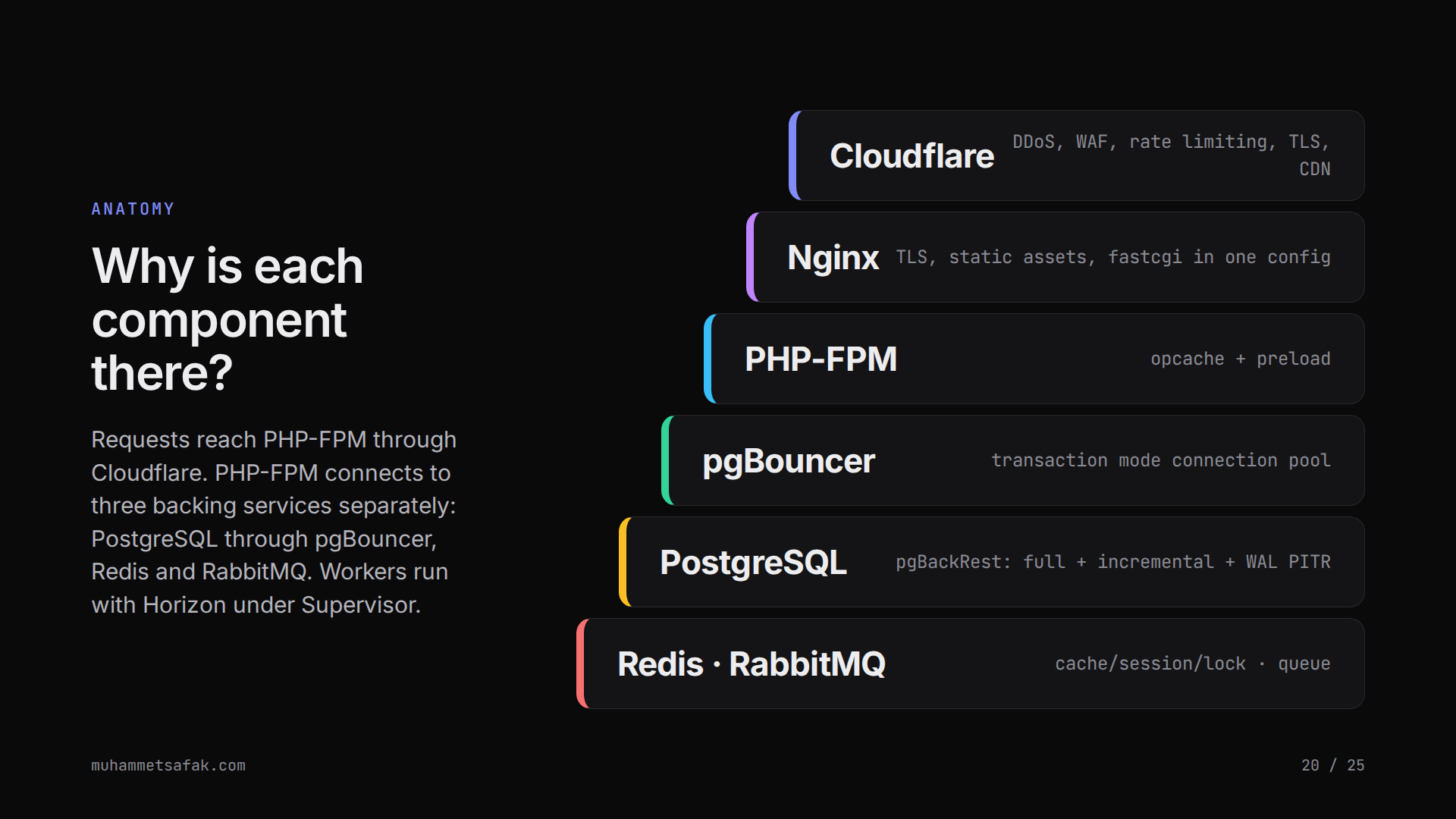

Anatomy

Why is each component there?

Requests reach PHP-FPM through Cloudflare. PHP-FPM connects to three backing services separately: PostgreSQL through pgBouncer, Redis and RabbitMQ. Workers run with Horizon under Supervisor.

  1. Cloudflare DDoS, WAF, rate limiting, TLS, CDN
  2. Nginx TLS, static assets, fastcgi in one config
  3. PHP-FPM opcache + preload
  4. pgBouncer transaction mode connection pool
  5. PostgreSQL pgBackRest: full + incremental + WAL PITR
  6. Redis · RabbitMQ cache/session/lock · queue

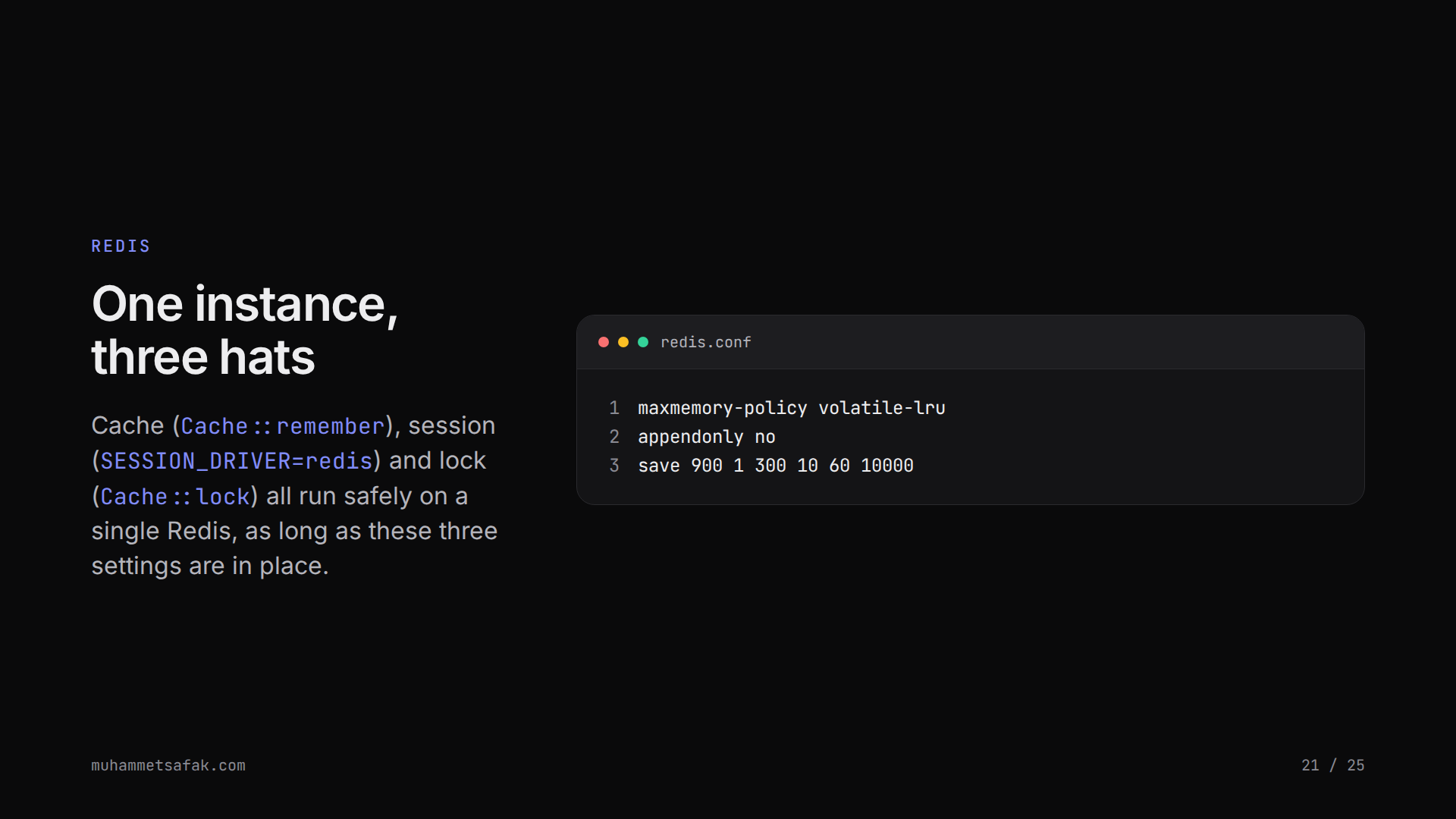

Redis

One instance, three hats

Cache (Cache::remember), session (SESSION_DRIVER=redis) and lock (Cache::lock) all run safely on a single Redis, as long as these three settings are in place.

redis.conf
maxmemory-policy volatile-lruappendonly nosave 900 1 300 10 60 10000

Queue (optional)

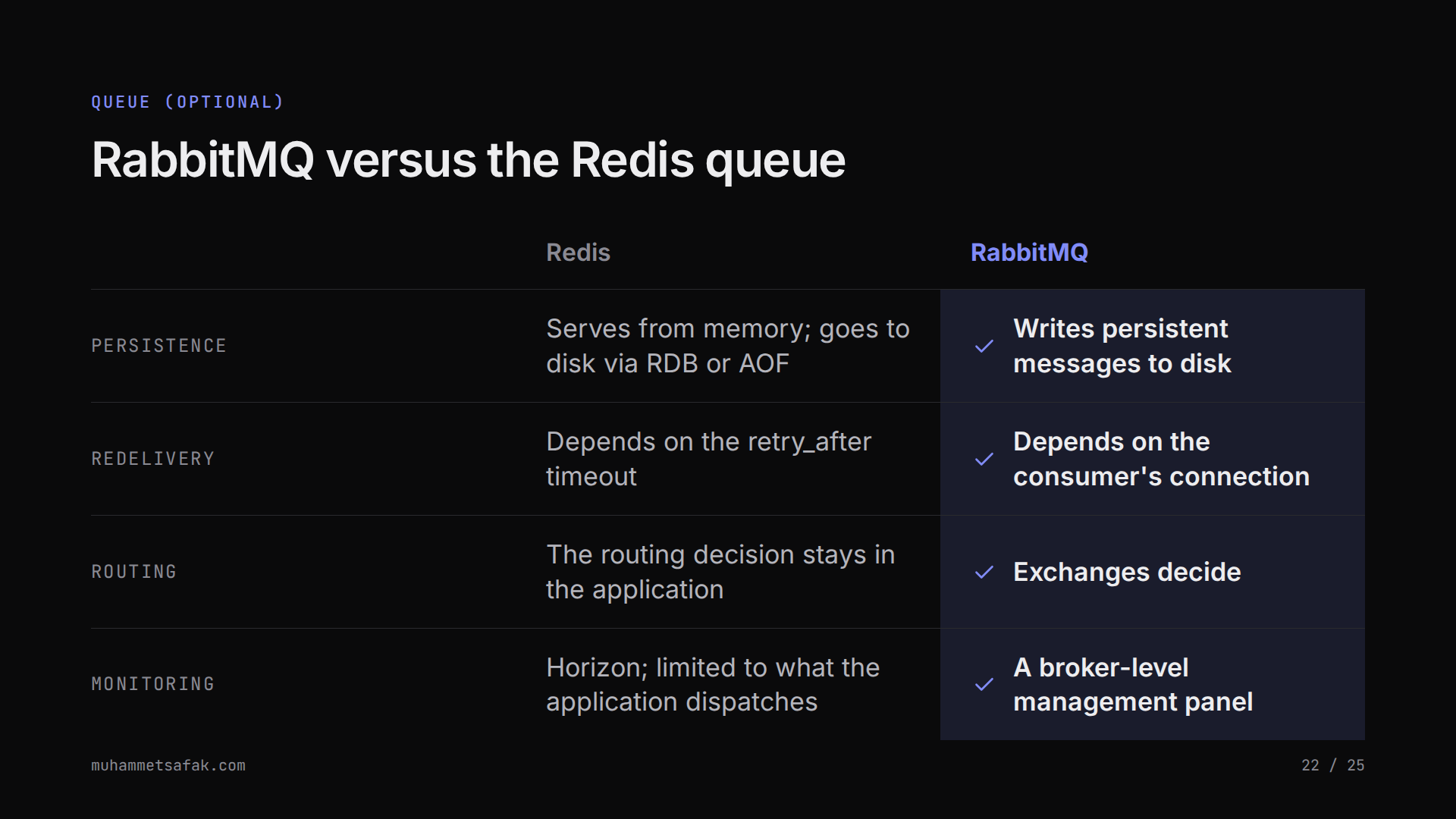

RabbitMQ versus the Redis queue

Redis RabbitMQ
Persistence Serves from memory; goes to disk via RDB or AOF Writes persistent messages to disk
Redelivery Depends on the retry_after timeout Depends on the consumer's connection
Routing The routing decision stays in the application Exchanges decide
Monitoring Horizon; limited to what the application dispatches A broker-level management panel

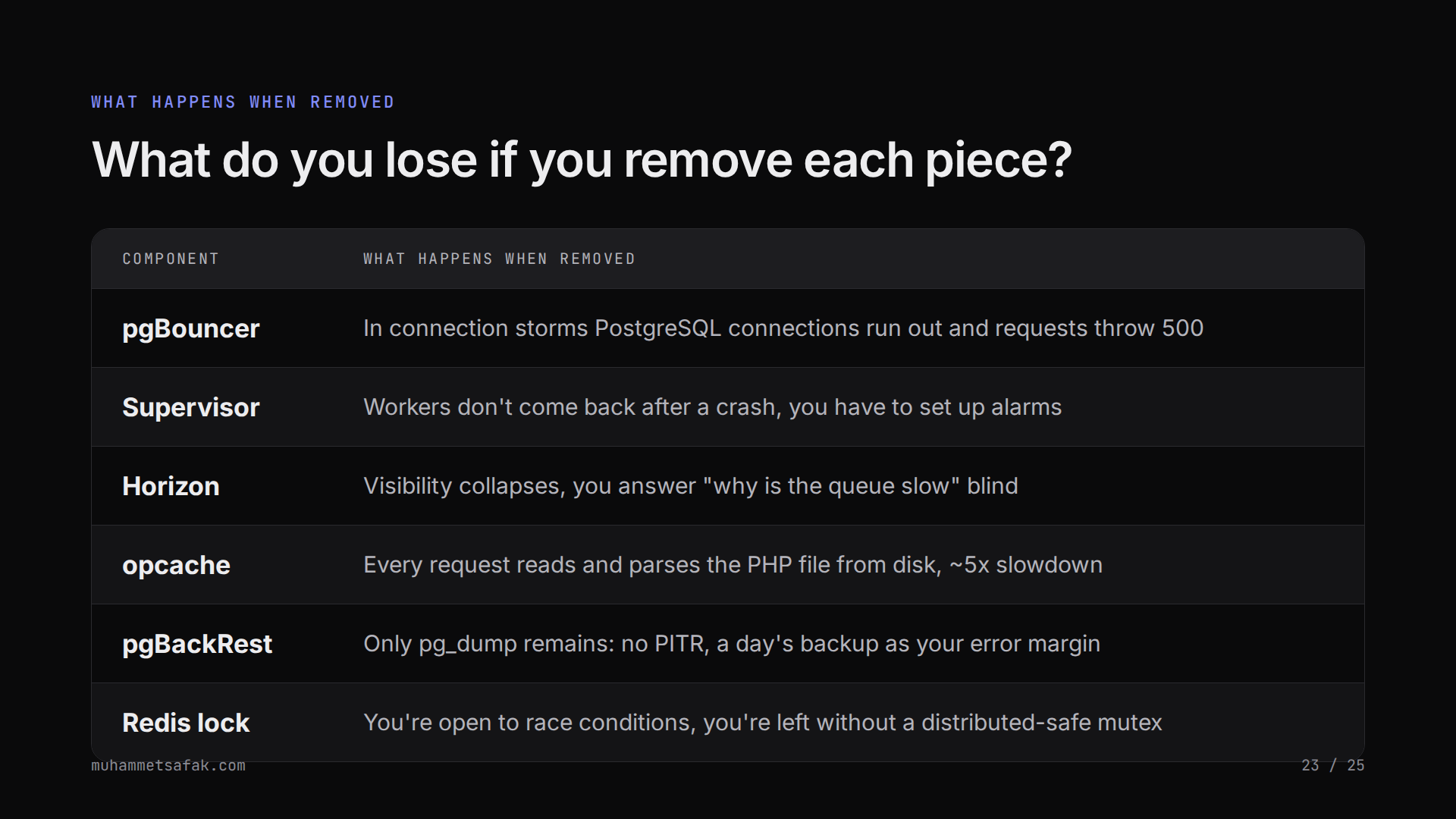

What happens when removed

What do you lose if you remove each piece?

What do you lose if you remove each piece?
Component What happens when removed
pgBouncer In connection storms PostgreSQL connections run out and requests throw 500
Supervisor Workers don't come back after a crash, you have to set up alarms
Horizon Visibility collapses, you answer "why is the queue slow" blind
opcache Every request reads and parses the PHP file from disk, ~5x slowdown
pgBackRest Only pg_dump remains: no PITR, a day's backup as your error margin
Redis lock You're open to race conditions, you're left without a distributed-safe mutex

Boring stack

Measurably useful, easy to change.

The strength of a boring stack is exactly this: every piece is quantitatively valuable and easy to change.

Tan smiling

Thank you

muhammetsafak.com/engineering/

Measure the data profile first, then pick the cheapest intervention.
